AccuRef 30 Copper/Copper Sulfate (Splice-able)

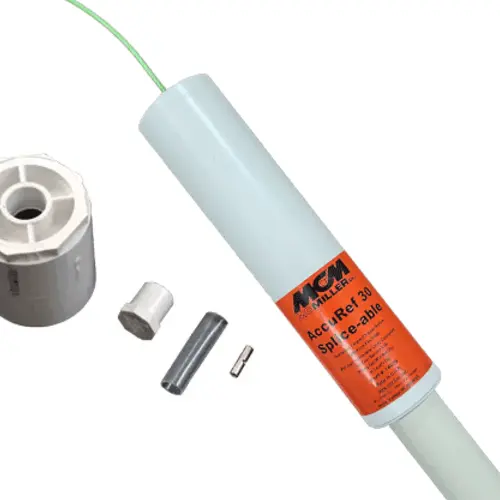

AccuRef 30 Copper/Copper Sulfate (Splice-able) Click to view a larger image
Item Number:
14628
Price:
$129.35/EA
In Stock Sign in to Buy

AccuRef 30 Copper/Copper Sulfate Permanent Reference Electrode (Splice-able)

All new M.C.Miller Accuref electrodes include a (batch) Calibration Certificate.

Features & Benefits
  • All hardware components included for onsite cable splicing (silicone sealant & PVC cement to be supplied by the customer)
  • Any customer-supplied cable can be used having a maximum outside diameter of 0.4 in (10 mm) and a maximum wire size of # 8 AWG (10 mm²)
  • Copper / copper sulfate electrode has a design lifetime of 30 years (AccuRef 30) and a -4°F (-20°C) freezing temperature
  • Moisture absorbent ceramic tip has a large electrical contact area of approximately16.4 inches² (approx. 105.8 cm²)
  • Electrode contains 80 g of high purity copper and 500 ml of saturated copper sulfate gel
  • Electrode is 2.77 inches (7.04 cm) in diameter at its maximum, is 15.0 inches long (38.1 cm) and weighs 3.9 lbs (1.77 kg)
Additional Information
  1. These products must be installed according to the installation instructions provided.
  2. These products are not guaranteed to maintain their calibration in all soil environments and it is incumbent on the customer to test their soil for the presence of any potential chemical contaminants prior to installation of these products. The M. C. Miller Company has not tested these products with regard to the effects of specific (potential) chemical contaminants on their calibration.
  3. These products are not designed for submersion applications.
  • Active electrical contact surface area: approx. 16.4 inches² (105.8 cm²)
  • Half-cell materials: 99.99% copper and saturated copper sulfate gel electrolyte
  • Max. diameter: 2.77 inches (7.04 cm)
  • Overall length (not including cable): 15.0 inches (38.1 cm)
  • Weight: approx 3.9 pounds (1.77 kg)
Important Notes:
  1. These products must be installed according to the installation instructions provided
  2. These products are not guaranteed to maintain their calibration in all soil environments and it is incumbent on the customer to test their soil for chloride ion content and for the presence of any other potential chemical contaminants prior to installation of these products.The M. C. Miller Company has not tested these products with regard to the effects of specific (potential) chemical contaminants on their calibration.
  3. These products are not designed for submersion applications.
